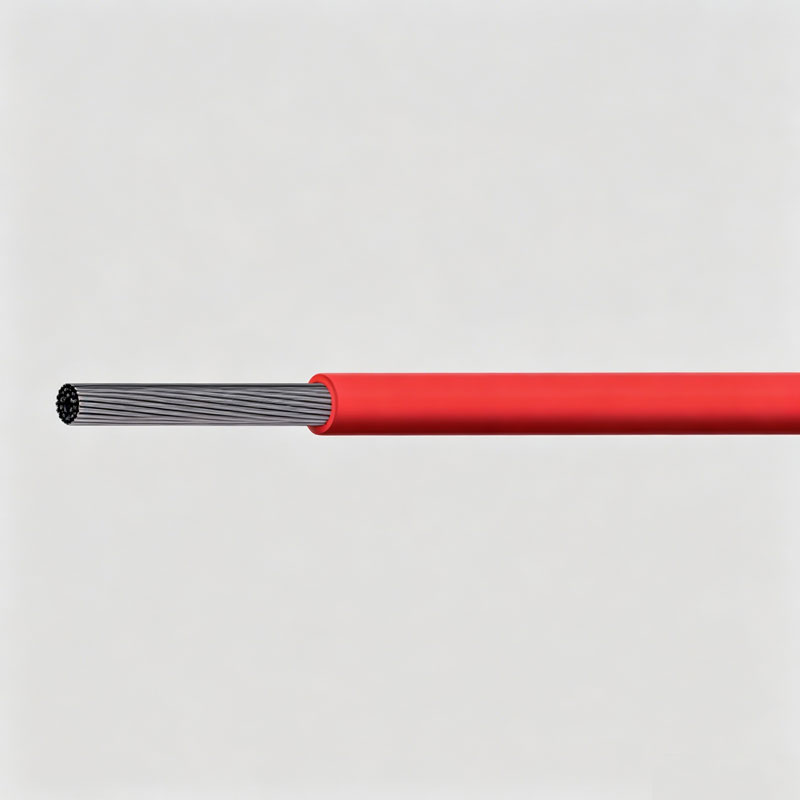

ETFE-150
This ETFE‑insulated cable features tinned/silver‑plated/nickel‑plated copper conductors, rated 600V with ‑60℃~+150 °C operating temperature. It offers great insulation, flame‑retardant, ageing‑resistant and radiation‑resistant performance, RoHS compliant. Ideal for home appliances, sensors, automotive internal harnesses and electronic‑electrical equipment.
25 people are viewing this right now
- Extreme Performance : Built for demanding environments.
- Certified Quality : Built to meet industry standards.
- Custom Cable Solutions : Tailored to your requirements.
- Technical Support : info@voltaracable.com
Product Structures
- Conductor: Solid or tin‑plated, silver‑plated, or nickel‑plated copper wire stranded flexible conductor. Tin‑plated copper wire performance refers to standard GB/T4910‑2022.Silver‑plated copper wire performance refers to standard JB/T3135‑2024.Nickel‑plated copper wire performance refers to standard GB/T11019‑2021.Conductor structure refers to standard GB/T 3956‑2008 or customer‑specific requirements.
- Insulation: ETFE. Insulation material performance refers to standard GJB773B‑2015.Finished wire/cable dimensions shall be tested according to GB/T 2951‑2008. Finished wire/cable electrical performance testing refers to GB/T 3048‑2007.
Technical Scope
- Temperature Range: -60~+150℃
- Rated Voltage: U0/U 600V
- Test Voltage: 2000V
- Insulation Resistance: Not less than 1.0 × 10³MΩ·km at 20℃ (Min. 1000MΩ·km at 20℃ )
Product features
- Excellent corrosion resistance; excellent electrical insulation properties; excellent flame retardant and aging‑resistant properties; good dielectric properties; outstanding radiation resistance; excellent mechanical properties; long product service life.
- Non‑flammable, self‑extinguishing. Flame retardancy test complies with DIN VDE 0482 Part 265‑2‑1 / EN 50265‑2‑1 / IEC 60332‑1 (Equivalent to DIN VDE 0472 Part 804, Test Method B).
- Free of hazardous substances, compliant with the ROHS standard.
Applications
- Suitable for household appliances, lighting fixtures (cold light sources), small motors, temperature sensors, electromagnetic coils, automotive internal wiring harnesses, electronic and electrical equipment, etc.
Technical Parameters：
| Gauge (AWG) | Conductor Structure | Conductor outer diameter (mm) | Insulation thickness (mm) | Insulation outer diameter (mm) | Appliance property Max resistance at 20°C (Ω/km) |
Package (Meter/roll) |
|---|---|---|---|---|---|---|
| 10 | 37×0.43 | 3.00 | 0.38 | 3.80 | 3.546 | 305 |
| 12 | 19×0.49 | 2.45 | 0.38 | 3.20 | 5.64 | 305 |
| 14 | 19×0.37 | 1.85 | 0.25 | 2.40 | 8.96 | 305 |
| 16 | 19×0.30 | 1.50 | 0.25 | 2.00 | 14.6 | 305 |
| 17 | 19×0.26 | 1.30 | 0.25 | 1.80 | 18.3 | 305 |
| 18 | 19×0.23 | 1.15 | 0.25 | 1.70 | 23.2 | 305 |
| 20 | 19×0.18 | 0.90 | 0.25 | 1.40 | 36.7 | 305 |
| 20 | 1×0.80 | 0.80 | 0.25 | 1.30 | 35.2 | 305 |
| 22 | 19×0.16 | 0.65 | 0.25 | 1.20 | 59.4 | 305 |
| 22 | 1×0.65 | 0.65 | 0.25 | 1.20 | 56.4 | 305 |
| 24 | 7×0.20 | 0.60 | 0.25 | 1.10 | 94.2 | 305 |
| 24 | 1×0.50 | 0.50 | 0.25 | 1.00 | 89.3 | 305 |
| 26 | 7×0.16 | 0.48 | 0.25 | 1.00 | 150 | 610 |
| 26 | 1×0.40 | 0.40 | 0.25 | 0.95 | 143 | 610 |
| 28 | 7×0.12 | 0.36 | 0.25 | 0.90 | 239 | 610 |
| 28 | 1×0.32 | 0.32 | 0.25 | 0.85 | 227 | 610 |
| 30 | 7×0.10 | 0.30 | 0.25 | 0.80 | 381 | 610 |
| 30 | 1×0.254 | 0.254 | 0.25 | 0.75 | 361 | 610 |
| 32 | 7×0.08 | 0.24 | 0.25 | 0.75 | 596 | 610 |
| 32 | 1×0.20 | 0.20 | 0.25 | 0.70 | 563 | 610 |
