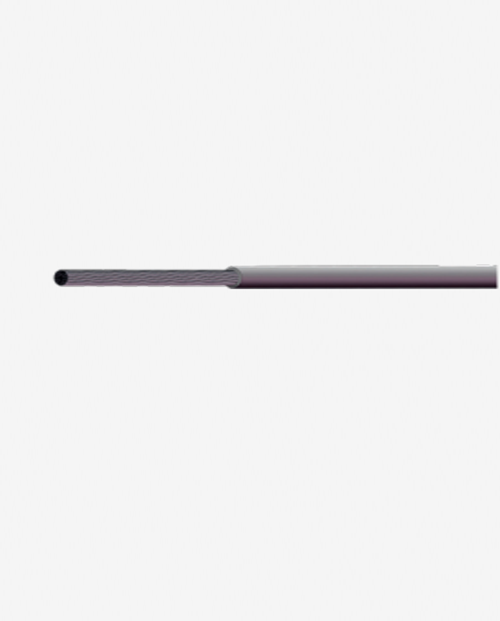

AWM1330/1331
AWM1330/1331 is a FEP‑insulated wire with tinned, silver‑plated or nickel‑plated soft copper conductors. Complying with UL, GB, JB and RoHS standards, it delivers‑65℃~200℃ wide temperature tolerance, 600V rated voltage, superior corrosion resistance, radiation resistance and self‑extinguishing performance, ideal for electronics, home appliances, industrial facilities and aerospace special‑purpose wiring.
21 people are viewing this right now
- Extreme Performance : Built for demanding environments.
- Certified Quality : Built to meet industry standards.
- Custom Cable Solutions : Tailored to your requirements.
- Technical Support : info@voltaracable.com
Product Structures
- Conductor: Soft conductor composed of single or multi-stranded tinned, silver-plated, or nickel-plated copper wires. Tinning performance reference: GB/T4910-2022 standard. Silver-plating performance reference: JB/T3135-2024 standard. Nickel-plating performance reference: GB/T11019-2021 standard. Conductor structure reference: UL758 & UL1581 or customer requirements.
- Insulation: FEP. Insulation material performance reference: UL758 & UL1581 standard. Finished wire/cable dimensional inspection method reference: UL758 & UL1581. Finished wire/cable electrical performance inspection method reference: UL758 & UL1581.
Technical Scope
- Temperature Range: -65~+200/+150℃
- Rated Voltage: U0/U 600V · Test Voltage: 2000V
- Insulation Resistance: Not less than 1.0 × 10⁹Ω·km at 20℃ (Min.1000MΩ·km at 20℃)
- Radiation resistant: up to 1×10⁵cJ/kg (up to 1 Mrad)
Product Features
- Excellent corrosion resistance: Resistant to oil, strong acids, strong alkalis, strong oxidizers, and microorganisms; prevents any fungal growth.
- Excellent electrical insulation properties: Features low, frequency-independent dielectric characteristics; high voltage resistant; low high-frequency loss; non-hygroscopic (water absorption <0.01%); minimal water vapor permeability (approx. 0.18 mg/cm² per 24 hours); high insulation resistance.
- Non-flammable and self-extinguishing: Flame retardant performance complies with DIN VDE 0482 Part 265-2-1 / EN 50265-2-1 / IEC 60332-1 (equivalent to DIN VDE 0472 Part 804 test method B).
- Free from harmful substances: Compliant with ROHS standards.
Applications
- Electronics Industry: Temperature compensation wires, cryogenic-resistant wires, high-temperature heating wires, aging-resistant wires, flame-retardant cables.
- Household Appliance Industry: Internal wiring for air conditioners, microwave ovens, electronic sterilizers, rice cookers, electric hot water bottles, electric heaters, electric ovens, electric casseroles, lamps, and lighting fixtures.
- Industrial Settings: Installation in control cabinets exposed to high heat, brick factories, heaters, kitchen equipment, measurement devices, chemical industry applications.
- Specialized Applications: Transmission lines for high-temperature/high-frequency electronic equipment; internal computer connection wires; aerospace cables; other special-purpose installation wires; oil well logging cables; winding wires for submersible oil pump motors; lead wires for micro-motors.
Technical Parameters：
| Gauge (AWG) | Conductor construction: Number/size (mm) | Insulation thickness (mm) | Average outer diameter (mm) | Max resistance at 20°C (Ω/km) | The length of package (m) |
|---|---|---|---|---|---|
| 10 | 37×0.43 | 0.51 | 4.05 | 3.546 | 305 |
| 12 | 19×0.49 | 0.51 | 3.50 | 5.64 | 305 |
| 14 | 19×0.37 | 0.51 | 2.90 | 8.96 | 305 |
| 16 | 19×0.30 | 0.51 | 2.55 | 14.6 | 305 |
| 17 | 19×0.26 | 0.51 | 2.35 | 18.3 | 305 |
| 18 | 19×0.235 | 0.51 | 2.20 | 23.2 | 305 |
| 20 | 19×0.20 | 0.51 | 2.00 | 36.7 | 305 |
| 20 | 1×0.813 | 0.51 | 1.85 | 35.2 | 305 |
| 22 | 19×0.16 | 0.51 | 1.85 | 59.4 | 610 |
| 22 | 1×0.65 | 0.51 | 1.70 | 56.4 | 610 |
| 24 | 7×0.20 | 0.51 | 1.65 | 94.2 | 610 |
| 24 | 1×0.511 | 0.51 | 1.55 | 89.3 | 610 |
| 26 | 7×0.16 | 0.51 | 1.50 | 150 | 610 |
| 26 | 1×0.404 | 0.51 | 1.45 | 143 | 610 |
| 28 | 7×0.12 | 0.51 | 1.40 | 239 | 610 |
| 28 | 1×0.32 | 0.51 | 1.35 | 227 | 610 |
| 30 | 7×0.10 | 0.51 | 1.35 | 381 | 610 |
| 30 | 1×0.254 | 0.51 | 1.30 | 361 | 610 |
